Quick Start

The Overall Structure and Conventions of HIPP

HIPP’s functions/objects are defined in a single namespace HIPP. Depending on the module to use, you may need to include different header files and visit sub-namespaces. See Fig. 1 for a summary.

• The general C++ utilities are defined directly in namespace HIPP. Users include the header <hippcntl.h> for access to them, e.g., the HIPP::prt() function and the HIPP::ErrLogic class.

• For each module X, there is a single sub-namespace HIPP::X. User include the header <hippx.h> to use them. For example, to use the communicator class in the MPI module, include <htppmpi.h> and define HIPP::MPI::Comm instances.

HIPP uses an ordinary naming conventions for definitions:

• Namespaces are capitalized. For example:

  • The global namespace HIPP

  • The sub-namespace MPI, IO, SIMD.

• C++ class/struct uses CamelCase convention, with the first letter capitalized. For example:

  • The MPI group class HIPP::MPI::Group.

  • HDF5 file class HIPP::IO::H5File.

  • Logic exception type HIPP::ErrLogic.

• Functions, (class) methods and variables are lower case. For example:

  • The printing function prt().

  • The dataset creation method in a HDF5 file class HIPP::IO::H5File::create_dataset().

• Constant variables (const or constexpr) are capitalized, except for special cases. For example:

  • The MPI float datatype HIPP::MPI::DOUBLE.

  • The HDF5 dataspace class for scalar HIPP::IO::H5Dataspace::SCALAR_C.

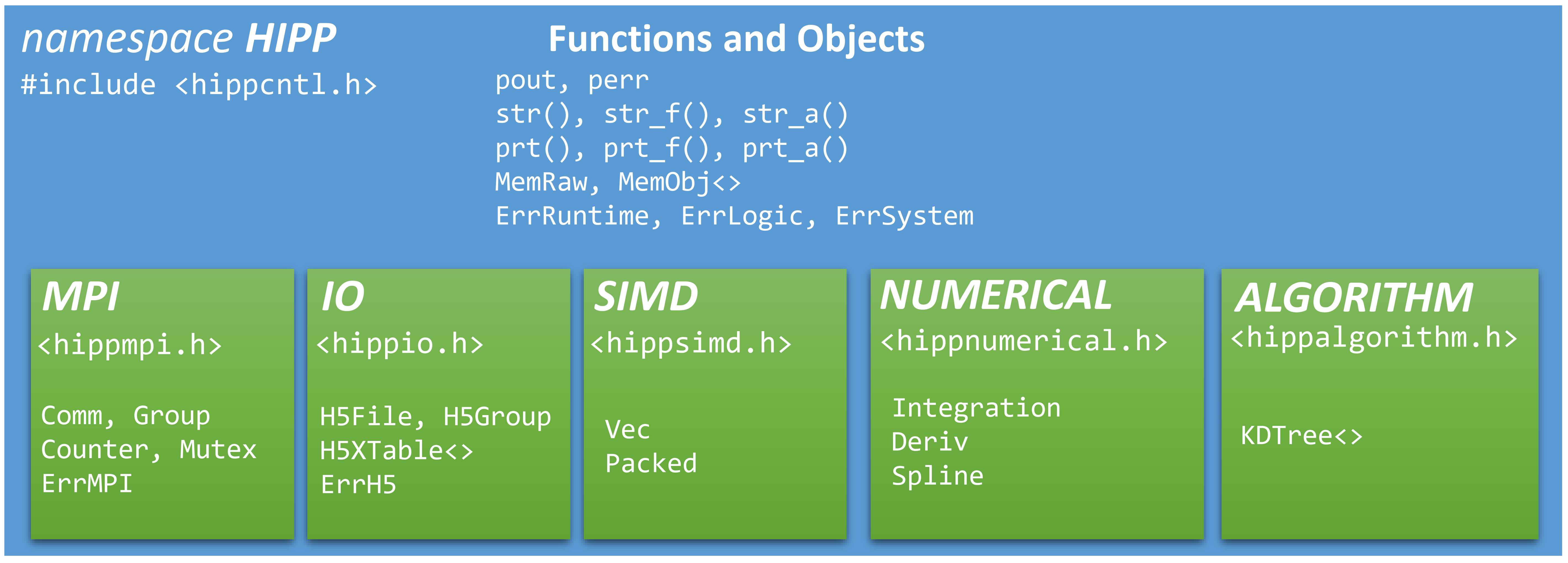

Fig. 1 Header files and namespaces. All HIPP utilities are defined in the namespace HIPP. Functions/objects in a module are defined in the sub-namespace,

Using HIPP: A Minimal Example

/* printing.cpp */
#include <hippcntl.h>
using namespace std;

int main(int argc, char const *argv[])
{
    double a = 1;
    int b = 2;
    string s = "The sum of ";

    /* print arguments of any type to standard out */
    HIPP::pout << s, a, " and ", b, " is ", a+b, endl;

    /* print any STL container that supports iteration into stream */
    vector<int> arr {1,2,3,4,5};
    HIPP::prt_a(cout, arr) << endl;

    /* transform variables into string */
    string s_joined = HIPP::str(s, a, " and ", b, " is ", a+b, '\n')
        + HIPP::str_a(arr) + '\n';
    HIPP::pout << s_joined;

    return 0;
}

c++ -std=c++17 -O3 -Wall  -o printing.out printing.cpp -lhippcntl
./printing.out

The sum of 1 and 2 is 3
1,2,3,4,5
The sum of 1 and 2 is 3
1,2,3,4,5

Using the MPI Module

/* p2p-comm.cpp */
#include <hippcntl.h>
#include <hippmpi.h>
using namespace std;

int main(int argc, char *argv[])
{
    HIPP::MPI::Env env(argc, argv);             // Init the MPI environment
    auto comm = env.world();

    if( comm.rank() == 0 ){
        int tag = 0, dest_rank = 1;
        vector<int> out_arr {1,2,3,4,5};
        comm.send(dest_rank, tag, out_arr);     // Process 0 sends to 1
    }else if( comm.rank() == 1 ){
        int tag = 0, src_rank = 0;
        vector<int> in_arr(5);
        comm.recv(src_rank, tag, in_arr);       // Process 1 sends to 0
        HIPP::prt_a(cout, in_arr) << endl;
    }

    return 0;
}

mpicxx -std=c++17 -O3 -Wall -o p2p-comm.mp.out p2p-comm.cpp -lhippmpi -lhippcntl
mpirun -n 4 ./p2p-comm.mp.out

1,2,3,4,5

Using the IO Module

/* io-arrays.cpp */
#include <hippcntl.h>
#include <hippio.h>
using namespace std;

struct Person {
    int age;
    char name[32];
    double height;
};

int main(int argc, char const *argv[]){
    /* create a new file named arrays.h5 */
    HIPP::IO::H5File out_file("arrays.h5", "w");

    vector<double> floats(32);
    /* write 32 floats as an 1-d array into dataset "floats"*/
    out_file.create_dataset<double>("floats", {32}).write(floats);

    vector<Person> persons(8);
    HIPP::IO::H5XTable<Person> tbl_manip (
        "age",      &Person::age,
        "name",     &Person::name,
        "height",   &Person::height);
    /* write 8 objects into a group "persons" as separate datasets for fields */
    tbl_manip.write(persons, out_file.create_group("persons"));
    /* or, write them as records into a single dataset "person_records" */
    tbl_manip.write_records(persons, out_file, "person_records");

    return 0;
}

c++ -std=c++17 -O3 -Wall -o io-arrays.out io-arrays.cpp -lhippio -lhippcntl -lhdf5
./io-arrays.out

HDF5 "arrays.h5" {
    GROUP "/" {
    DATASET "floats" {
        DATATYPE  H5T_IEEE_F64LE
        DATASPACE  SIMPLE { ( 32 ) / ( 32 ) }
        DATA { ... }
    }
    DATASET "person_records" {
        DATATYPE  H5T_COMPOUND {
            H5T_IEEE_F64LE "height";
            H5T_ARRAY { [32] H5T_STD_I8LE } "name";
            H5T_STD_I32LE "age";
        }
        DATASPACE  SIMPLE { ( 8 ) / ( 8 ) }
        DATA { ... }
    GROUP "persons" {
        DATASET "age" {
            DATATYPE  H5T_STD_I32LE
            DATASPACE  SIMPLE { ( 8 ) / ( 8 ) }
            DATA { ... }
        }
        ...
